Universal Runner F36 - designed to assist in the re-pivoting of the finest wrist-watch to the largest wall-clock pivots. The set included the accessories shown below.
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|

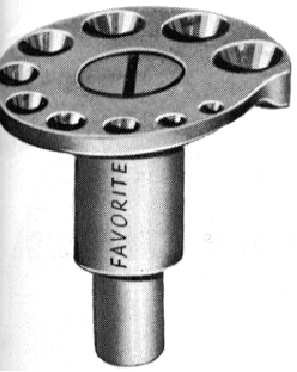

Centering Plate F37R for clocks. 10 taper holes 1.10mm to 6 mm
|
|
|
|
|
|
|
|
Centering Plate F37P for wall clocks. 7 taper holes
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Pivot Polishing Accessory F38 18 grooves from 0.35mm to 1.4mm
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Pivoting accessory. By using the standard tailstock in conjunction with the F8A accessory tailstock this delicate job could be undertaken on the Favorite 3 lathe.
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

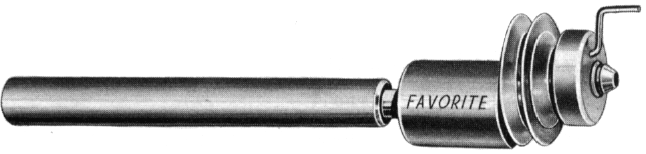

Combined Runner F39 with pulley. The pulley could be removed and set up either as an eccentric (as shown) or, if inserted directly into the spindle, concentric.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

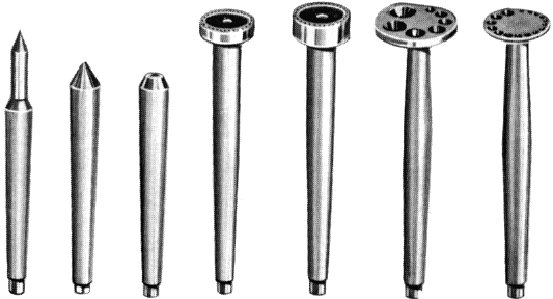

Set of Small Centres F41 for use with the Combined Runner F39
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

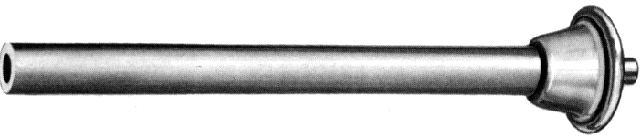

Spindle with Extractor No. F5B with tapered hole to mount various centres.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

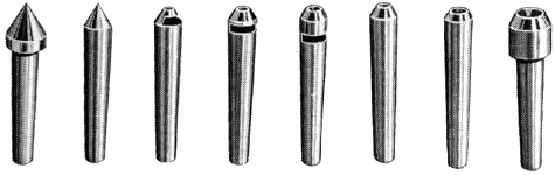

Pivoting and Tailstock centres F42. The three on the left fit into the Spindle with Extractor unit No. F5B. The others were used with a centre holding collet.
|
|
|
|
|
|
|
|
|
|
